AIT1168

    The AIT1168 is a single-chip VGA-to-Video scan converter for integration into computer-based applications which are designed to be synchronous to the TV at 2X the frame rate and line rate of the TV. The AIT1168 is a pin-compatible upgrade from the AIT1108, providing additional features and improved image processing capability, including hardware scaling of computer images for TV-size underscan display. The Block Diagram shows all the functions in the fully-integrated digital scan converter, providing complete system features for stand-alone use without an external microcontroller. The advanced Flic-Freedigital filter technology produces outstanding video quality for a clear and stable display. Contact AITech Microelectronics Technical Marketing for more information.


Click here to download a datasheet in PDF format.

Features

  • 3-channel 8-bit input digitizer
  • Multiple input formats
    • 640 x 480 @ 60 Hz
    • 640 x 480 @ 50 Hz
    • 800 x 600 @ 60 Hz
    • 800 x 600 @ 50 Hz
  • Hardware image size scaling for TV-size underscan display of input images
  • Advanced Flic-Free?/font> digital filter technology
  • Multiple output formats
    • NTSC
    • NTSC-EIAJ
    • PAL B/G/H/I
  • 3 channel 10-bit output D/A converters
  • Simultaneous Composite and S-Video outputs
  • 80 pin MQFP package

Applications
  • VGA to Video Converter modules
  • Multimedia PC
  • Notebook or Palmtop PC
  • TV set-top box
  • Network Computer
  • Internet Appliance
  • Internet TV

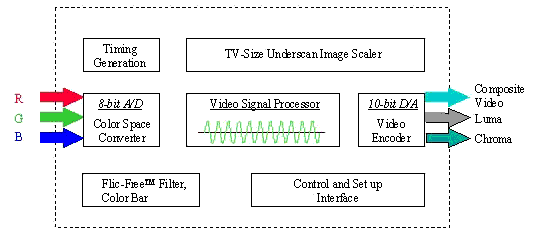

AIT 1168 Block Diagram



Advanced Flic-Free; Digital Filter Technology

The Flic-Freeanti-flicker filter is a fully-digital adaptive flicker filter derived from AITech's experience in providing high quality scan converter modules as system peripheral products. It provides the user with 3 different filter levels. It also provides a built-in color bar test pattern which may be useful in component or system testing or in video system set-up.
