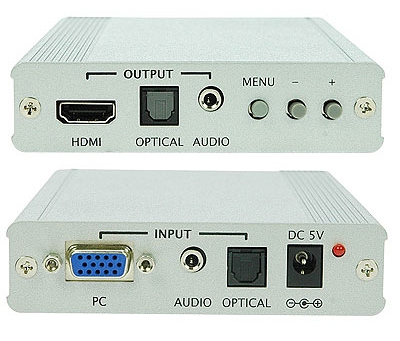

Computer VGA to HDMI Scaler


Download Product Manual

Applications:
This Computer VGA-to-HDMI Scaler is designed to upscale the analog video signal from a PC input source to digital HDMI resolutions up to 1080p. Besides video upscaling, the VGA-to-HDMI Scaler also converts digital/analog audio signals to digital/analog format, then output to HDMI combined with the video, TOSLink (optical fiber), and phono jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows the user to select a variety of output resolutions and adjust for best picture quality.


Features:

  • HDMI 1.2, HDCP 1.1 and DVI 1.0 compliant.
  • Scales any PC resolutions to PC (VGA ~ WUXGA)/ HD (480i ~ 1080p) resolutions.
  • Automatically detects the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected.
  • Provides output picture adjustment for contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size.
  • Supports high resolution output:
    -PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA
    -SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p
  • Supports stereo LPCM analog/digital audio input and stereo LPCM analog/digital output. Simply select among the audio input sources in the OSD menu, then output the audio to HDMI, TOSLink and phono jack simultaneously.



  What's Included

  • VGA-to-HDMI Scaler

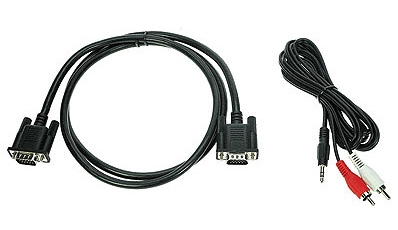

  • VGA-to-VGA (D-Sub) Cable
  • Audio Cable

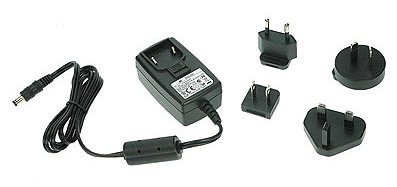

  • AC Power Adapter
  • Instruction Manual

Limited Warranty: One Year

Part #:  06-888-008-02
