AIT2139

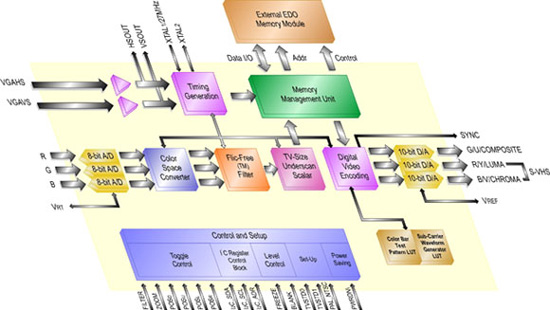

The AIT2139 is a single-chip analog RGB in, multi-sync Video Signal Processor which can operate in asynchronous multi-sync modes with an external memory. The multi-sync capability makes it ideal for TV or other applications which are designed to be stand alone without any software required. The AIT2139 complies with the Macrovision* tape copy protection. The Block Diagram shows all the functions in the fully-integrated scan converter, providing complete system features for stand-alone use without an external microcontroller. The advanced Flic-Free™ digital filter technology and improved signal processing produce outstanding video quality for a clear and stable display of graphics and text. Contact AITech Microelectronics Technical Marketing for more information.

Click here to download a datasheet in PDF format.

Features (With External Memory)

• Macrovision* 7.1.xx compliance

• Analog, Non-interlaced RGB input

• Horizontal and Vertical underscan

• Multiple frequency input formats

  • 640 x 480 @ 60 - 85 Hz

  • 800 x 600 @ 56 - 75 Hz

  • 1024 x 768 @ 60 Hz

• Advanced Flic-Free™ digital filter technology

• I2C Control

• Multiple output formats

  • NTSC

  • PAL B/G/H/I/M/N

• 3 channel 10-bit output D/A converters

• Simultaneous display on PC , LCD and TV

• Simultaneous Composite and S-Video outputs, or Interlaced RGB/YUV component output

• Freeze, Zoom, and Pan of video image

• 128 pin MQFP package


• PC-Ready TV

• Embedded CPU desktop systems with TV out

• Scan Converter Boxes

• Video Conference, projection equipment

• Internet-ready TV set-top box

• Internet TV


- - -

* Macrovision: This device is protected by U.S. patent numbers 4,631,603, 4,577,216 and 4,819,098 and other intellectual property rights. The use of Macrovision's copy protection technology in the device must be authorized by Macrovision and is intended for home and other limited pay-per-view uses only, unless otherwise authorized in writing by Macrovision. Reverse engineering or disassembly is prohibited.
