WaveWatcher TV-II and TVR-202
- Board Differences -

- How to tell which board you have -



WaveWatcher TV-II

There are three different versions of the WaveWatcher TV-II: Level 3.0, Level 4.0, and Level 6.0
These three different boards look very much alike.

You MUST use the proper software for the board you have. You will note three levels in Software Updates - one for each of the levels listed below. Be sure to use the correct software version for your board level.

Level 3.0

Level 4.0

Level 6.0

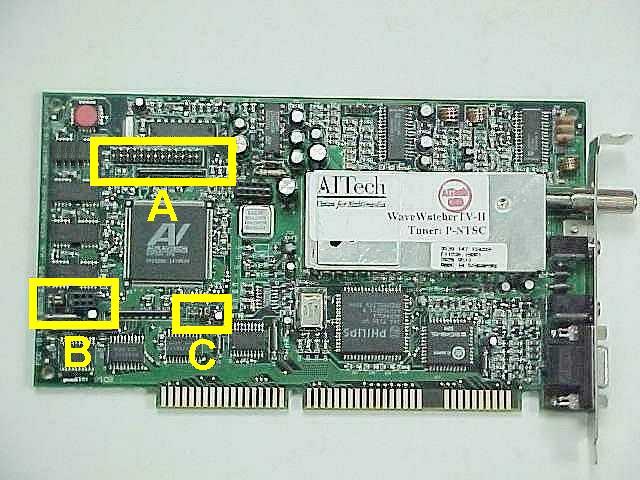

Box A - Feature connector

Box B - I/O address block or switch

Box C - IRQ setting jumpers

TV-II

Picture of a WaveWatcher TV-II



TVR-202

The TVR-202 looks very much like the TV-II board, but it does not have IRQ setting jumpers (box C) like the TV-II.  If your board does not have IRQ setting jumpers, you have a TVR-202.

There are two board levels for the TVR-202:

You MUST use the proper software for the board you have. You will note two levels in Software Updates - one for each of the levels listed below. Be sure to use the correct software version for your board level.

Level 2.0

Level 6.0


Last update 5-20-01
